Cat 320 Medium excavators tech specs
:quality(50)/61068/519768a8-c994-450b-830f-a169a290ded5.png)
:quality(50)/61078/conversions/5daebf9a-0213-4683-9600-9f520eec7e1e-webp.webp)
:quality(50)/61070/conversions/4c4bc3b9-cec1-4a94-a68d-1ff53a770d7e-webp.webp)
:quality(50)/61072/conversions/8e33421a-1dce-4cc7-bcbf-451c6f5ff027-webp.webp)
:quality(50)/61076/conversions/0fafd10a-c014-4a3e-bd3e-748c90ce43c7-webp.webp)

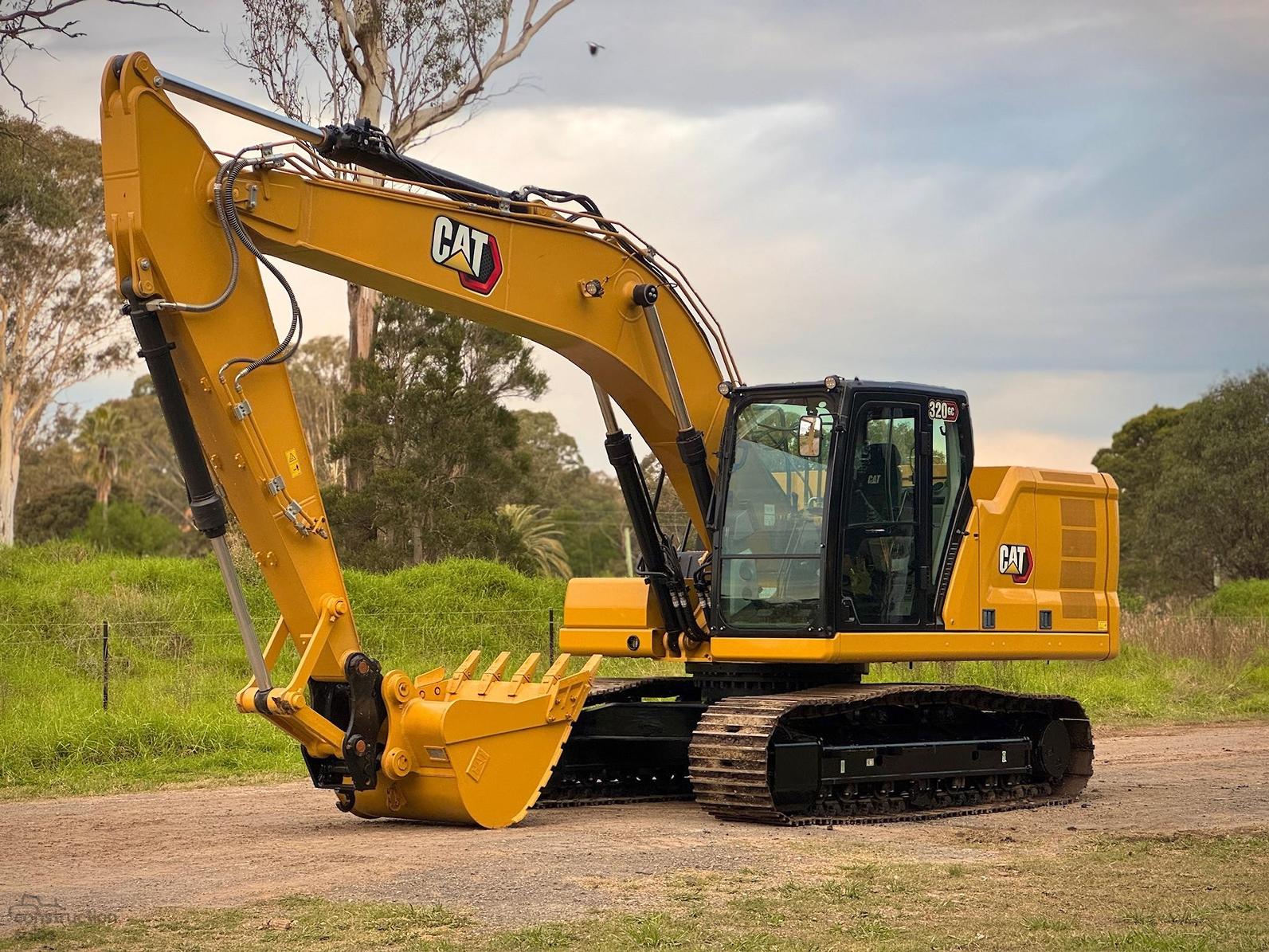

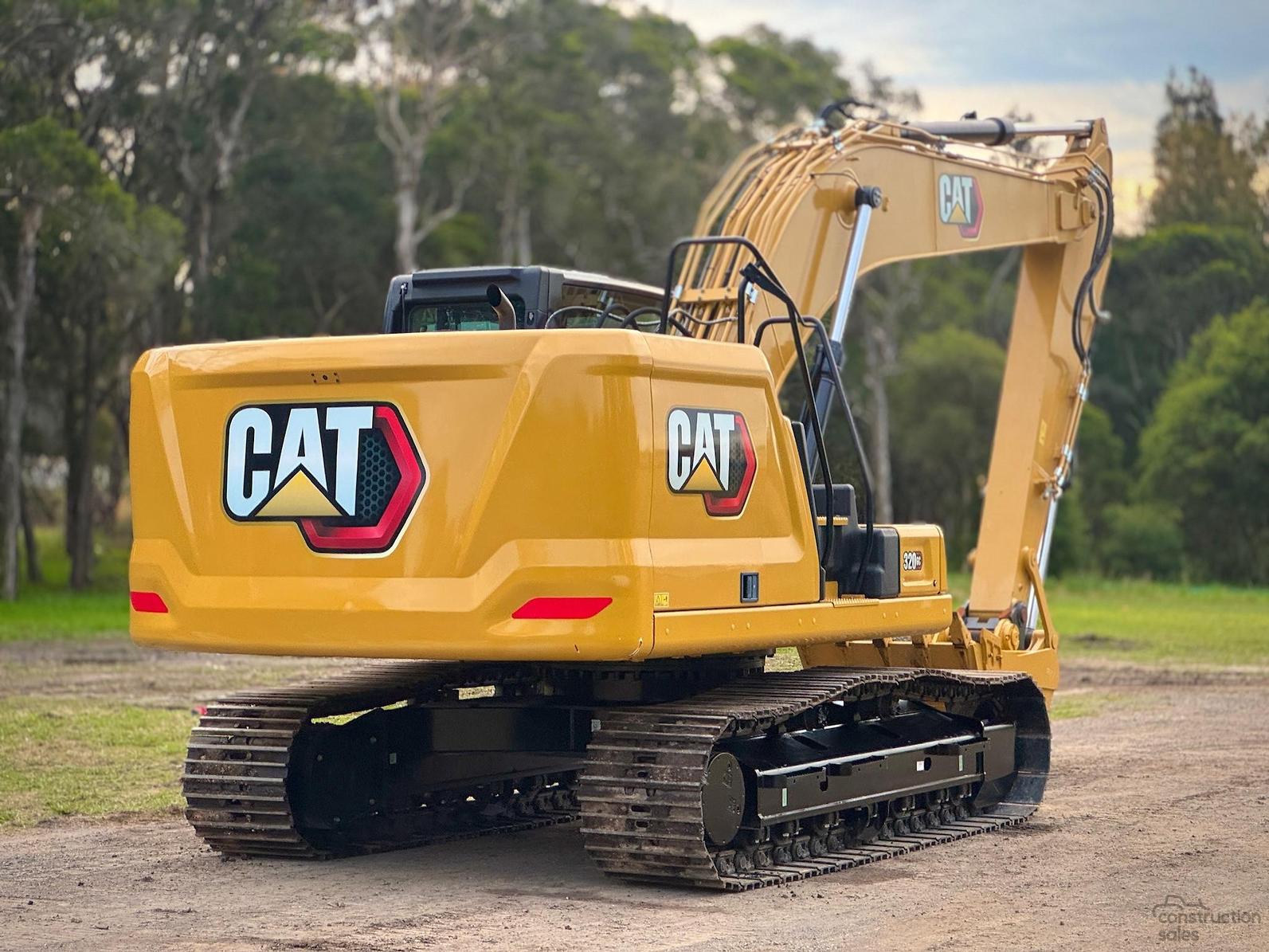

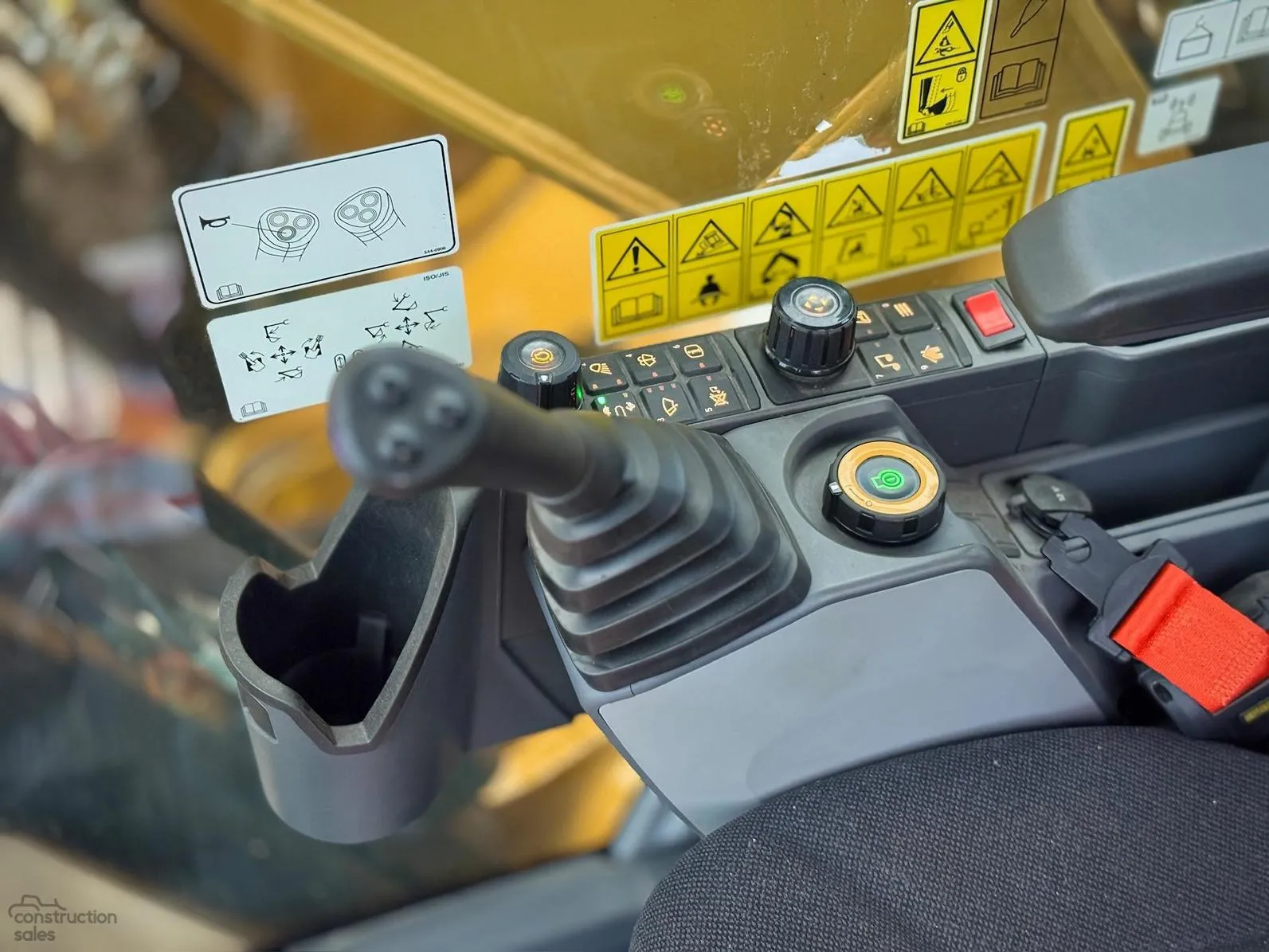

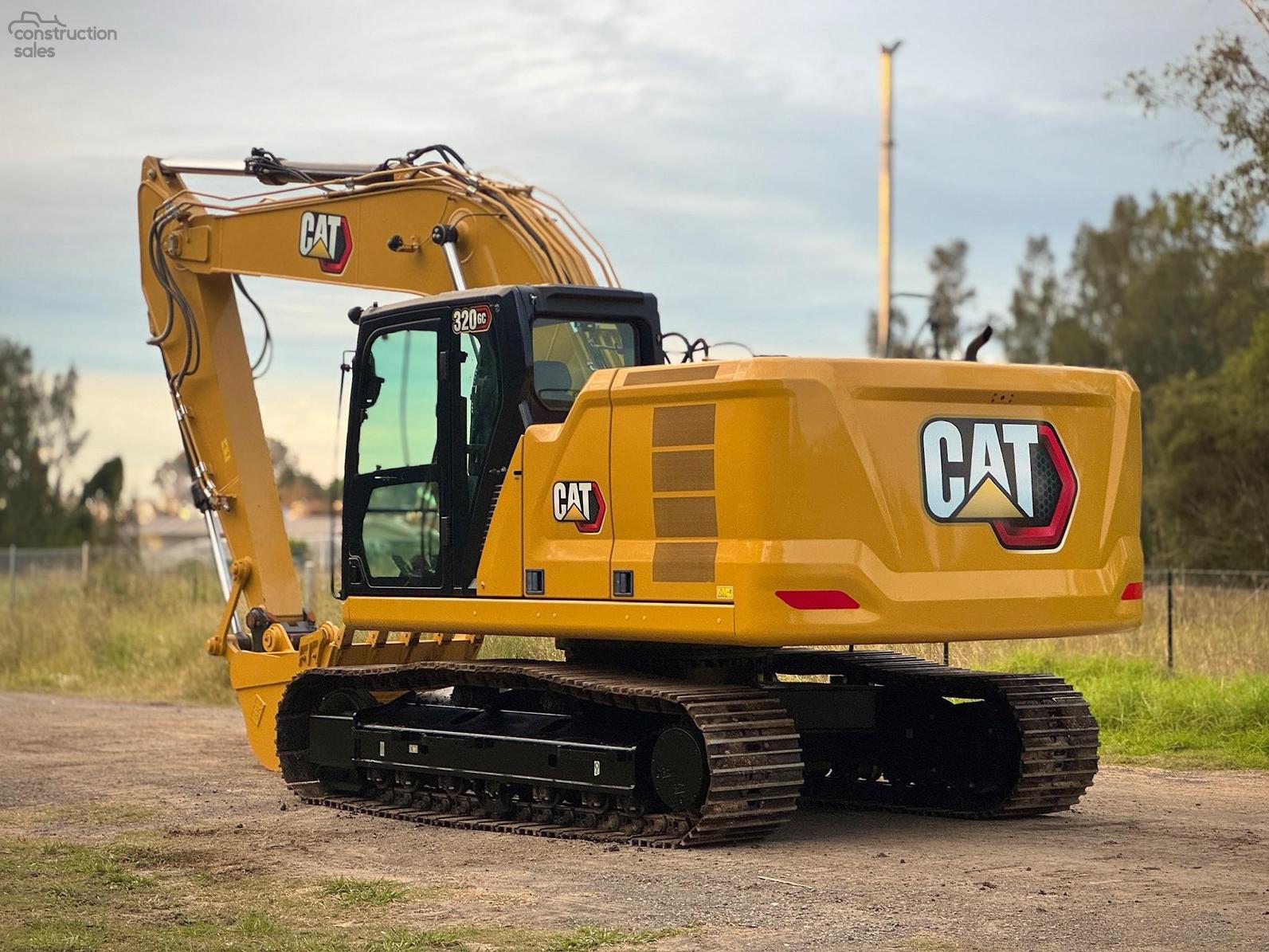

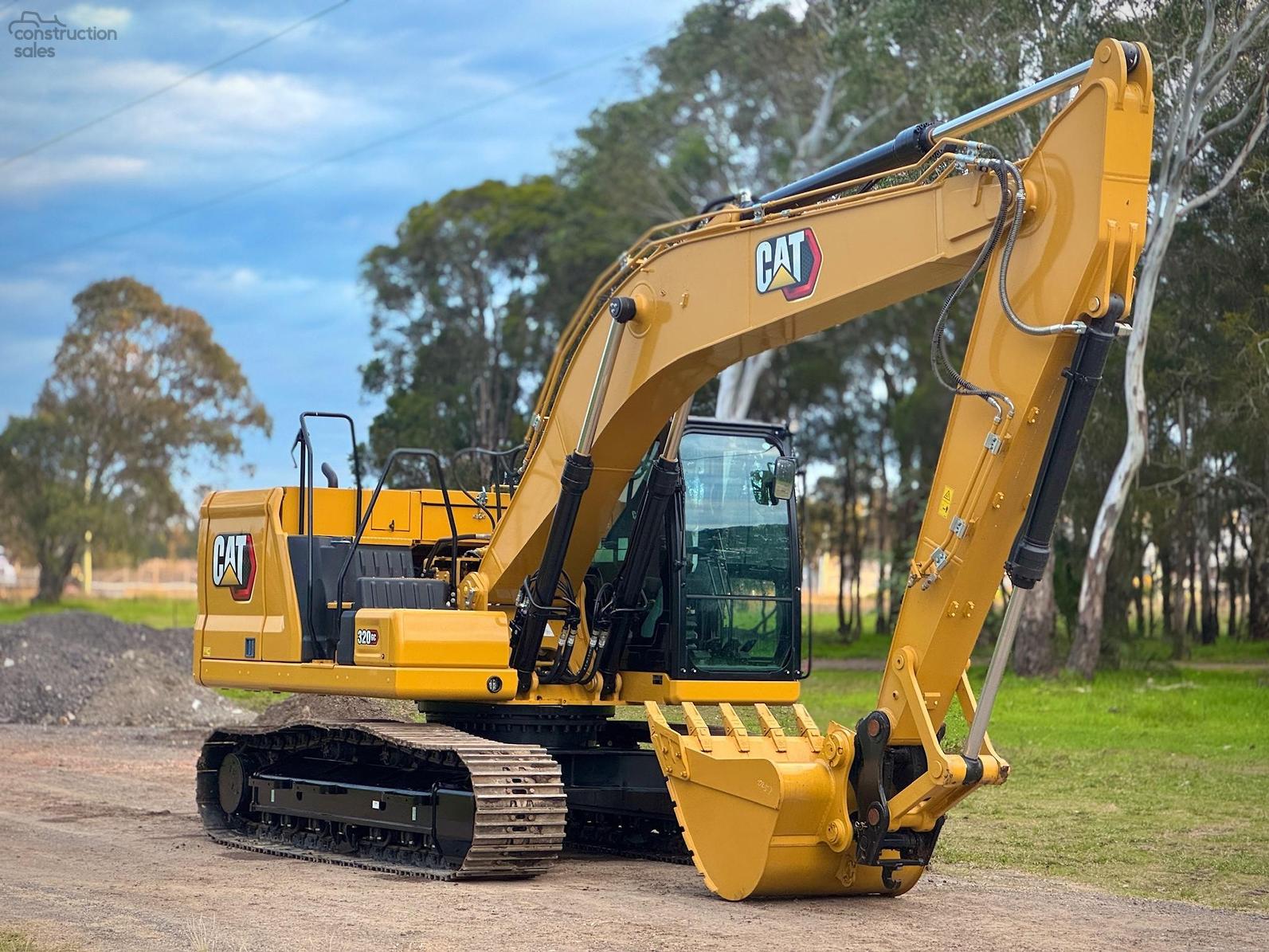

The Cat 320 brings serious power and smart tech into a 21.2 t (46,700 lb) package. It digs deep, hauls heavy, and keeps operators fresh with a comfort-oriented cab and factory-grade assist systems.
Cat Grade 2D/Assist and payload onboard
Ground-level maintenance and long filter life
110 kW (150 hp) C7.1 power in a 21.2 t frame

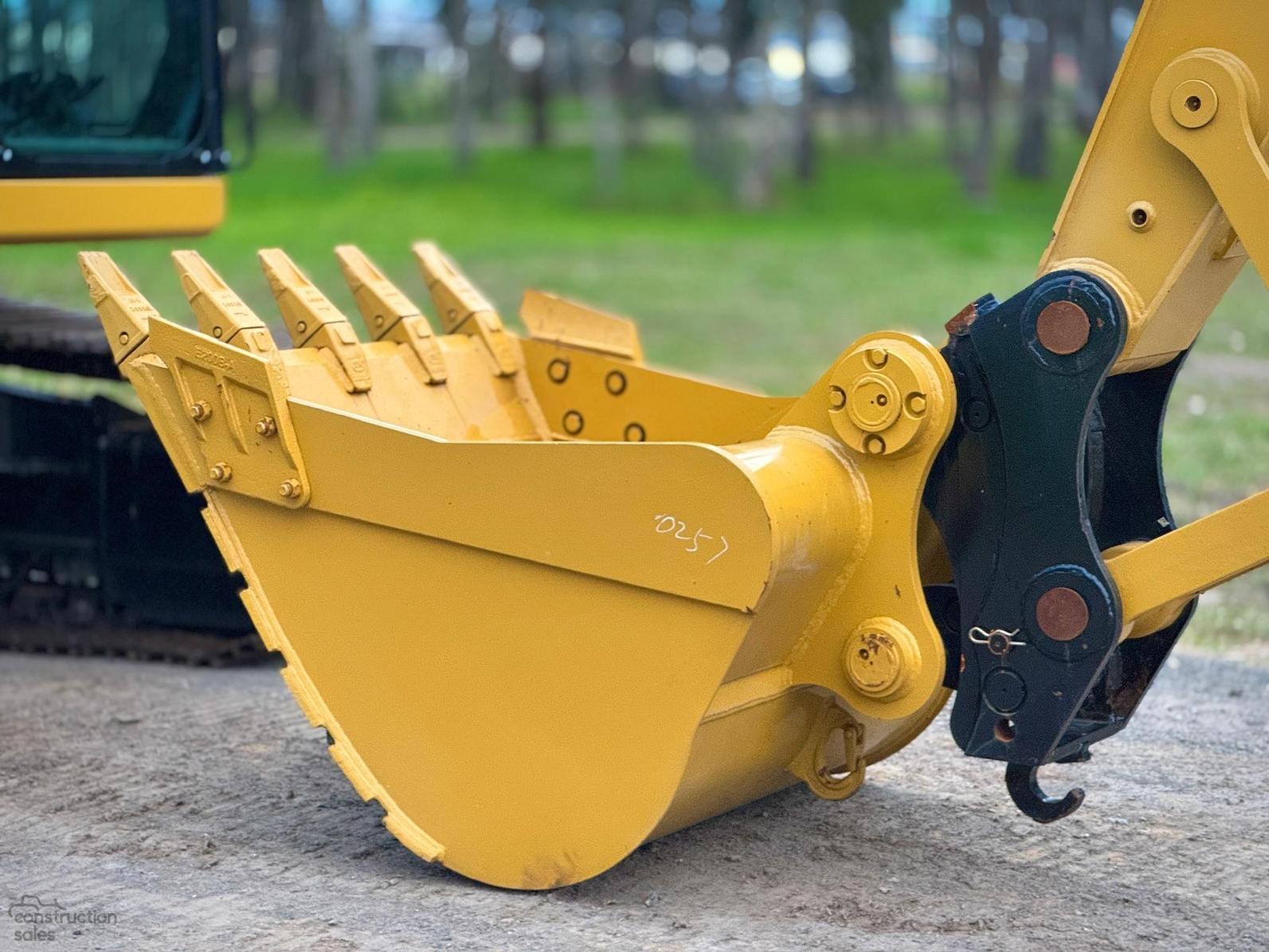

1.4 m³ bucket soaks up more material per swing
Cat 320 Technical specifications
General
Engine model
Cat C7.1
Operating weight
21,200 kg
Max dump height
7.34 m
Boom length
5.7 m
Gradeability
70 %
Bucket width
1,350 mm
Bucket capacity
1.4 m3
Max speed forward
5.5 kph
Max digging depth
6720 mm
Max digging reach
9890 mm
Engine
Displacement
7100 cm3
Gross power
110 kw
Operational specifications
Swing speed
10.9 rpm
Arm crowding force
106 kN
Refill capacities
Engine oil cap
15 liter
Undercarriage
Drawbar Pull
178 kN
Track width
600 mm

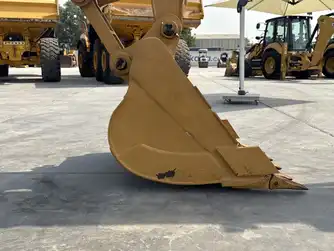

Attachments
Bucket digging force
133 kN
Dimensions
Height - top of cab
3.05 m
Hydraulic system
Pump flow cap
259 lpm
Relief valve pressure
329.98 bar
Service refill capacities
Fuel cap
410 liter
Hydraulic fluid cap
170 liter
Cat 320 expert review
Overview
The Cat 320 is a 21.2 t (46,700 lb) next-gen excavator powered by a 110.5 kW (150 hp) Cat C7.1 engine. It delivers up to 6.72 m (22 ft) digging depth and 1.4 m³ (1.8 yd³) bucket capacity.
Full factory tech (Grade Assist, payload, UI) reduces setup and rework.
Built-in tech requires operator training to get full value.
Performance & Efficiency
Main hydraulics at 429 L/min and up to 5,500 psi pressure deliver high dig force and control. Fuel use is cut by ~25%, and maintenance cost drops up to ~15% versus older models.
In Comparison
Compared to the PC300, you gain full tech and more power for not much more weight. Against the 323, it’s lighter, easier to move, and more cost-effective.
Verdict
The Cat 320 hits the utility-productivity-tech sweet spot. Perfect for high-production digging and grading. Skip it if your work is ultra-compact or you want the simplest rig.
Cat 320 owner rating
2017-2025
Overall rating
Based on 2 ratings
4.5
4.0
4.5
5.0
4.5
50 %
50 %
0 %
0 %
0 %
4.0
4.0
4.0
5.0
4.0
5.0
4.0
5.0
5.0
5.0
Cat 320 similar models
:quality(50)/61069/aa870a4b-8a45-46aa-937d-cd50f5982c71.png)
:quality(50)/61080/6b042c90-6dfa-4015-827e-999293459920.png)
:quality(50)/61082/fbf15455-dd32-45a6-9d26-5a378b126687.png)

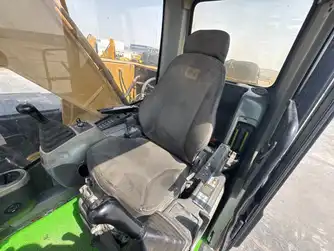

Cat 320 gallery
