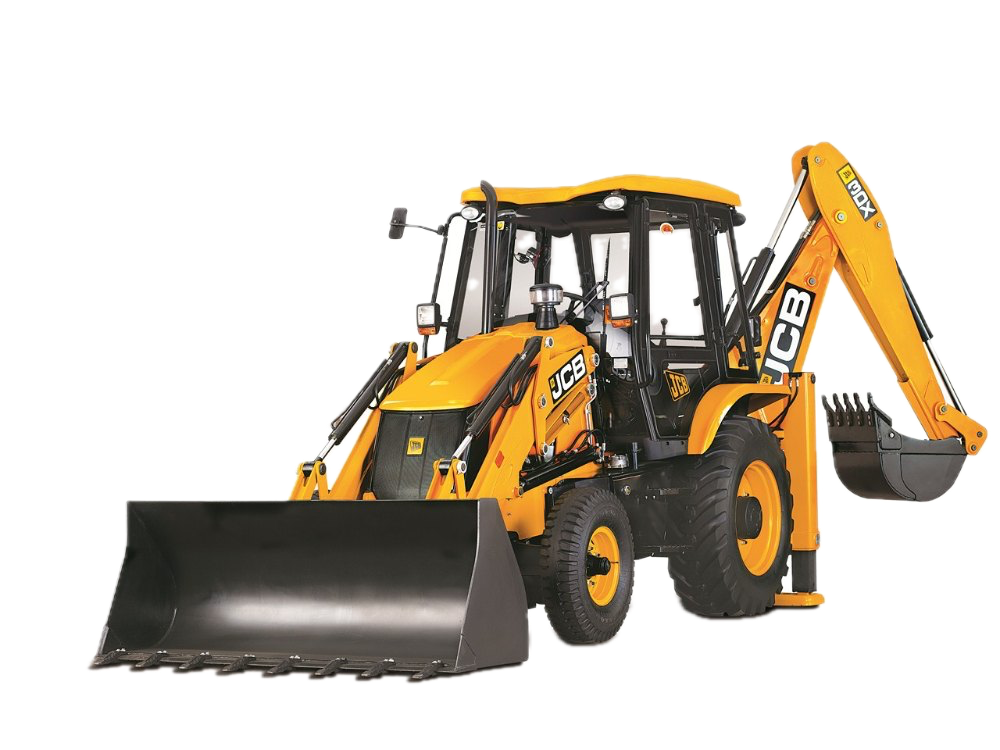

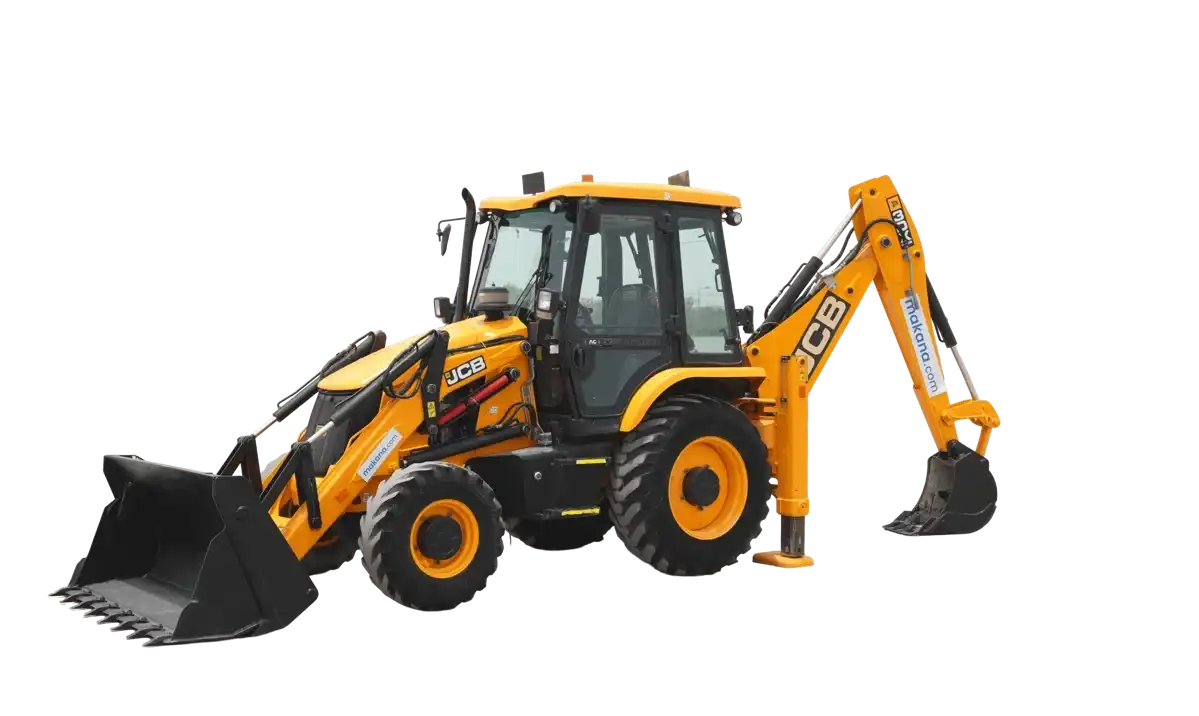

JCB 3DX Backhoe loaders

100K+ machines in details.

JCB 3DX Backhoe loaders tech specs

Video[1]

Interior [3]

Exterior [4]

Attachments [2]

2019-2025

7,200 kg Operating weight

1,650 kg Lifting capacity

32.3 kph Max speed forward

37 kw Gross power

2,740 mm Loader dump height

880 mm Loader dump reach

The JCB 3DX backhoe loader (2019–2025) brings compact power where sites demand nimble yet capable gear. It tips the scales at around 7.51 t, packs a 1.1 m³ loader bucket, digs down to 4.77 m, reaches horizontally about 5.97 m, and gets you going up to 40 km/h—all powered by a 4.8 L, 56 kW (75 hp) 4‑cylinder JCB 448 engine.

Engine: JCB 448, 4‑cylinder, 4.8 L, 56 kW (75 hp), 305 Nm @ 1100 rpm

Operating Weight: ~7,510 kg

Loader Bucket: ~1.1 m³

Backhoe Digging Depth: ~4.77 m

Horizontal Reach: ~5.97 m

Travel Speed: ~40 km/h

Show features

Makana rating

Owner rating

| 1

Market average

AED 220,000

Starting from

AED 190,000

JCB 3DX Technical specifications

General

Engine model

JCB 430 CRDi

Operating weight

7,200 kg

Lifting capacity

1650 kg

Bucket width

790 mm

Tire size

(F) 9/16.16 PR, (R) 16.9/28.12 PR

Bucket capacity

0.26 m3

Max speed forward

32.3 kph

Transmission type

Syncroshuttle

Engine

Displacement

3000 cm3

Aspiration

Turbocharged

Gross power

37 kw

Max torque

270 Nm

Emissions

Tier 4F

Refill capacities

Engine oil cap

15 liter

Dimensions

Transport length

6 m

Transport width

2 m

Wheelbase

2.17 m

Hydraulic system

Pump flow cap

114 lpm

Relief valve pressure

265.44 bar

Pump type

Variable displacement

Loader

Breakout force

51.7 kN

Loader dump height

2740 mm

Loader dump reach

880 mm

Loader digging depth

79 mm

Service refill capacities

Cooling fluid cap

16.5 liters

Fuel cap

128 liter

Hydraulic fluid cap

92 liter

Transmission fluid cap

17.5 liter

Rear axle fluid capacity

20 liter

Transmission

Number of reverse gears

Number of forward gears

Operating specifications

Rack back angle

38 º

Brake system

JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc

Backhoe

Backhoe dump height

4.18 m

Backhoe reach from swivel

5.4 m

Bucket rotation

185 degrees

Backhoe dump reach

2.9 m

Backhoe digging depth

4770 mm

Download datasheets

OEM product brochure

JCB 3DX expert review

Reviewed by Raul M. on September 3, 2025

Overview

Balanced, compact, and productive. The base 3DX covers daily site work; 3DX Plus focuses on value, 3DX Xtra adds load and lift muscle, and 3DX Super pushes digging performance — up to ~5.05 m depth depending on setup — while keeping service simple and uptime high.

Pros Compact frame with real loading and digging capability.
Fuel-smart DieselMAX platform, easy service access, low-fatigue cab.

Cons Limited telematics on some trims.
Still a ~7.5 t machine, so transport and access need planning.

Performance & Efficiency

DieselMAX, auto-idle, and variable-flow hydraulics keep fuel and heat down while maintaining quick cycles. Tearout forces are stout for the size, and daily checks are fast to keep uptime up.

In Comparison

Heavier and more capable than compact units, lighter and easier to move than big rigs. Choose Plus for budget work, Xtra for stronger loading, Super for deeper, faster digs.

Verdict

A no-nonsense mid-range backhoe that fits tight sites, works all day, and does not punish the fuel bill. Pick Super if your mix leans toward deep trenching and frequent backhoe use.

JCB 3DX owner rating

JCB 3DX Backhoe loaders [2019-2025]

2019-2025

Overall rating

Based on 0 ratings

5.0

performance

5.0

comfort

5.0

fuel efficiency

4.0

safety

5.0

features

5.0

5 stars

100 %

4 stars

0 %

3 stars

0 %

2 stars

0 %

1 stars

0 %

JCB 3DX similar models

Highlight differences

JCB 3DX Plus

3DX

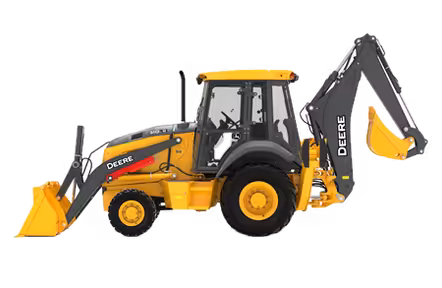

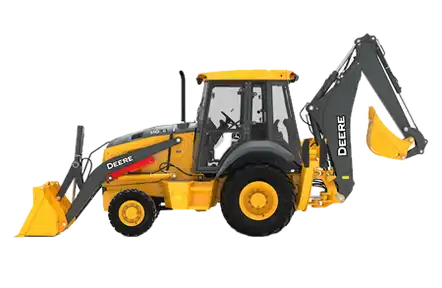

John deere 310SG

310SG

Case 851FX

851FX

General

Engine model

Engine model JCB 430 CRDi

Engine model Cat C3.3B

Engine model FPT F5BFL413A*W

Operating weight

Operating weight 7,200 kg

Operating weight 6,124 kg

Operating weight 8,100 kg

Lifting capacity

Lifting capacity 1,650 kg

Lifting capacity 3,332 kg

Lifting capacity 3,700 kg

Bucket width

Bucket width 790 mm

Bucket width 610 mm

Bucket width -

Tire size

Tire size (F) 9/16.16 PR, (R) 16.9/28.12 PR

Tire size (F) 12.5/80-18, 10 PR, (R) 19.5L-24, 8 PR R4

Tire size (F) Standard 9x16-16 PR, (R) Standard 16.9x28-12 PR

Bucket capacity

Bucket capacity 0.26 m3

Bucket capacity 0.21 m3

Bucket capacity 0.3 cu m

Max speed forward

Max speed forward 32.3 kph

Max speed forward 33 kph

Max speed forward 39.2 kph

Transmission type

Transmission type Syncroshuttle

Transmission type Collar Shift

Transmission type Powershuttle with TC

Years

Years 2019-2025

Years 1996-2021

Years 2022-2025

Market Average

Market Average AED 220,000

Market Average AED 605,000

Market Average AED 210,000

Price

Price AED 190,000

Price AED 182,000

Price AED 189,000

Engine

Displacement

Displacement 3,000 cm3

Displacement 3,326.58 cu cm

Displacement 3,400 cu cm

Aspiration

Aspiration Turbocharged

Aspiration Naturally aspirated

Aspiration -

Gross power

Gross power 37 kw

Gross power 55.41 kw

Gross power 72 kw

Max torque

Max torque 270 Nm

Max torque 174.9 Nm

Max torque 459 Nm

Emissions

Emissions Tier 4F

Emissions Tier 2

Emissions CEV Stage IV

Torque rise

Torque rise -

Torque rise 38 %

Torque rise -

Bore

Bore -

Bore 9.4 cm

Bore -

Net power

Net power -

Net power 52.42 kw

Net power -

Number of cylinders

Number of cylinders -

Number of cylinders 3

Number of cylinders -

Power measured @

Power measured @ -

Power measured @ 2,500 rpm

Power measured @ -

Stroke

Stroke -

Stroke 11.94 cm

Stroke -

Torque measured @

Torque measured @ -

Torque measured @ 1,300 rpm

Torque measured @ -

Refill capacities

Engine oil cap

Engine oil cap 15 liter

Engine oil cap 8.5 liter

Engine oil cap 9.1 liter

Dimensions

Transport length

Transport length 6 m

Transport length 7 m

Transport length 6 m

Transport width

Transport width 2 m

Wheelbase

Wheelbase 2.17 m

Wheelbase 2.18 m

Ground clearance

Ground clearance -

Ground clearance 0.4 m

Ground clearance -

Overall Length

Overall Length -

Overall Length 3.08 m

Overall Length -

Overall Width

Overall Width -

Overall Width 1.92 m

Overall Width -

Hydraulic system

Pump flow cap

Pump flow cap 114 lpm

Pump flow cap 87.06 lpm

Pump flow cap 154 lpm

Relief valve pressure

Relief valve pressure 265.44 bar

Relief valve pressure 34.47 bar

Relief valve pressure 209.94 bar

Pump type

Pump type Variable displacement

Pump type Gear open center

Pump type Closed center

Loader

Breakout force

Breakout force 51.7 kN

Breakout force 45.4 kg

Breakout force 54.11 kN

Loader dump height

Loader dump height 2,740 mm

Loader dump height 2,590 mm

Loader dump height 2,660 mm

Loader dump reach

Loader dump reach 880 mm

Loader dump reach 911 mm

Loader dump reach 840 mm

Loader digging depth

Loader digging depth 79 mm

Loader digging depth 147 mm

Loader digging depth 110 mm

Service refill capacities

Cooling fluid cap

Cooling fluid cap 16.5 liters

Cooling fluid cap 3.03 liter

Cooling fluid cap 20 liter

Fuel cap

Fuel cap 128 liter

Fuel cap 73.81 liter

Fuel cap 129 liter

Hydraulic fluid cap

Hydraulic fluid cap 92 liter

Hydraulic fluid cap 32.17 liter

Hydraulic fluid cap 80 liter

Transmission fluid cap

Transmission fluid cap 17.5 liter

Transmission fluid cap 77.59 liter

Transmission fluid cap 18 liter

Rear axle fluid capacity

Rear axle fluid capacity 20 liter

Rear axle fluid capacity 16 liter

Rear axle fluid capacity 17.1 liter

Front axle fluid capacity

Front axle fluid capacity -

Front axle fluid capacity 8.5 liter

Front axle fluid capacity 8.9 liter

Transmission

Number of reverse gears

Number of reverse gears 2

Number of reverse gears 4

Number of forward gears

Number of forward gears 4

Number of forward gears 8

Number of forward gears 4

Operating specifications

Rack back angle

Rack back angle 38 º

Rack back angle 45 º

Brake system

Brake system JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc

Brake system Power-assisted, hydraulic wet disc, mounted inboard, self adjusting and self equalizing

Brake system Wet Multi Discs, 4 Discs

Cab sound

Cab sound -

Cab sound 97 dBA

Cab sound -

Exterior sound

Exterior sound -

Exterior sound 111 dBA

Exterior sound -

Backhoe

Backhoe dump height

Backhoe dump height 4.18 m

Backhoe dump height 3,430 m

Backhoe dump height 3,800 mm

Backhoe reach from swivel

Backhoe reach from swivel 5.4 m

Backhoe reach from swivel 5,560 m

Backhoe reach from swivel 5,900 mm

Bucket rotation

Bucket rotation 185 degrees

Bucket rotation 190 degrees

Bucket rotation 204 º

Backhoe dump reach

Backhoe dump reach 2.9 m

Backhoe dump reach 1,190 m

Backhoe dump reach -

Backhoe digging depth

Backhoe digging depth 4,770 mm

Backhoe digging depth 4,420 mm

Backhoe digging depth 4,700 mm

Tires

Front tires size (2WD)

Front tires size (2WD) -

Front tires size (2WD) 7.50-16

Front tires size (2WD) -

Rear tires size

Rear tires size -

Rear tires size 16.9-24

Rear tires size -

JCB 3DX gallery

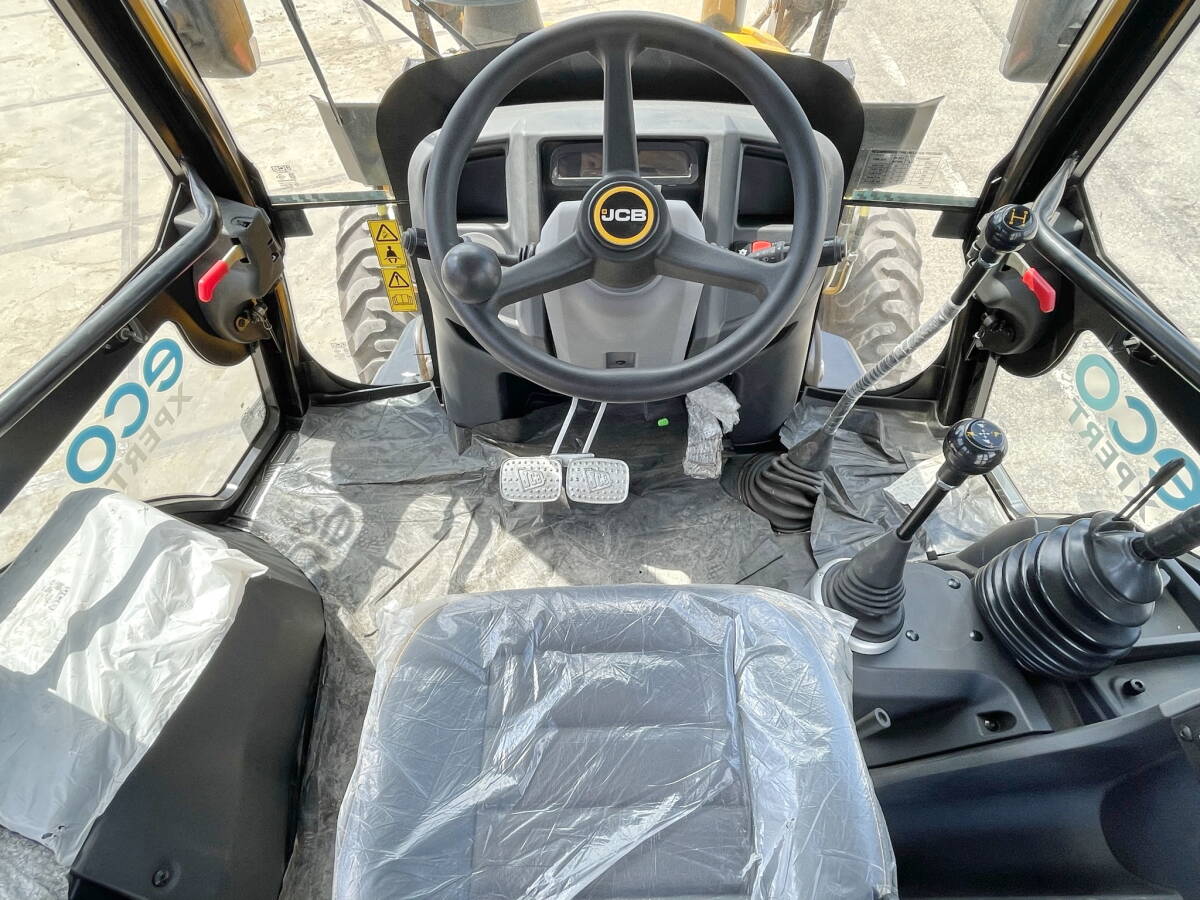

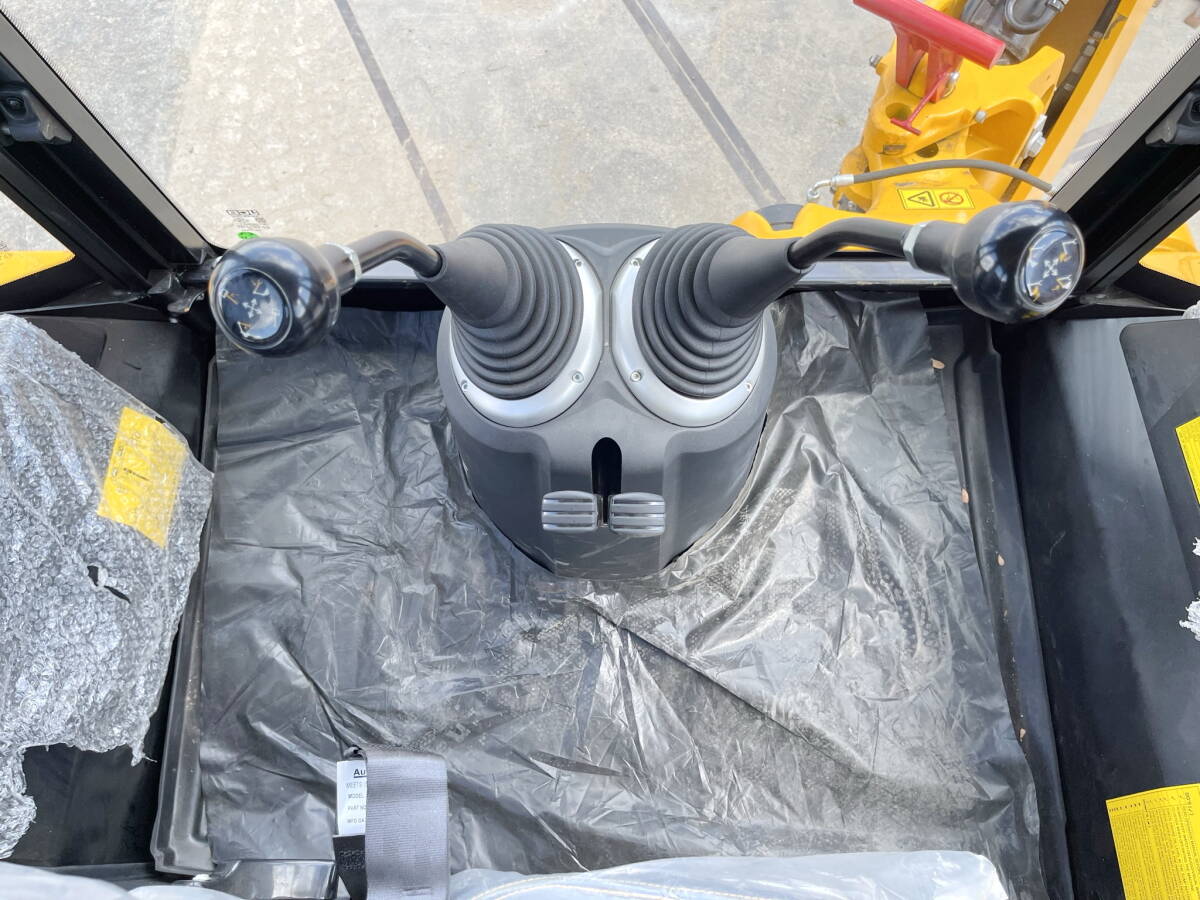

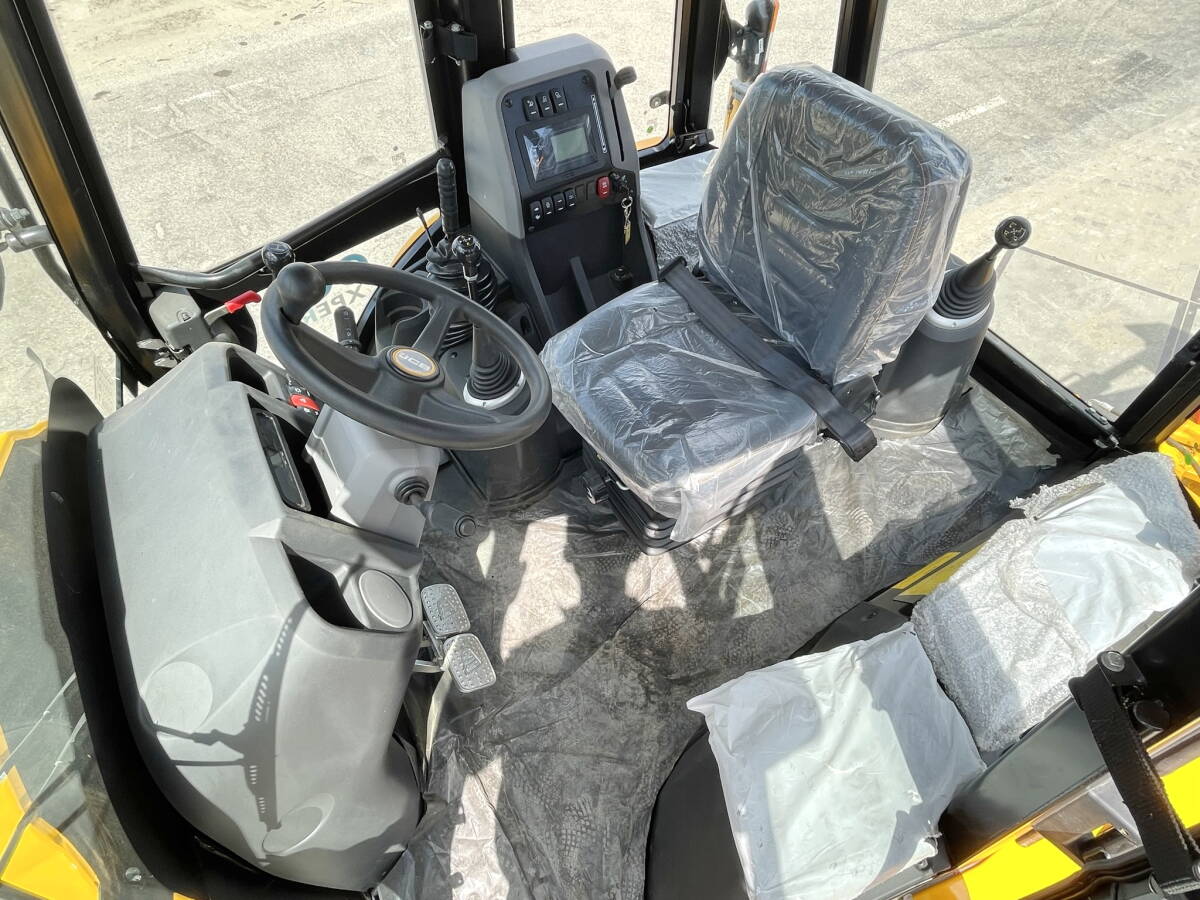

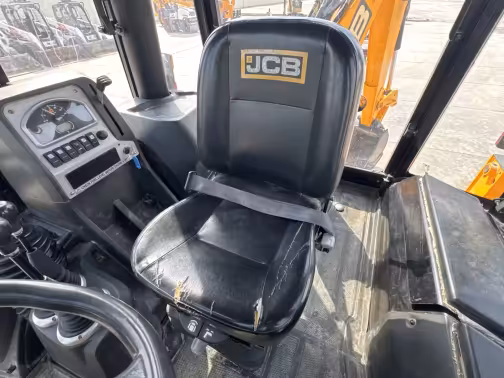

Generation-JCB 3DX Backhoe loaders-interior

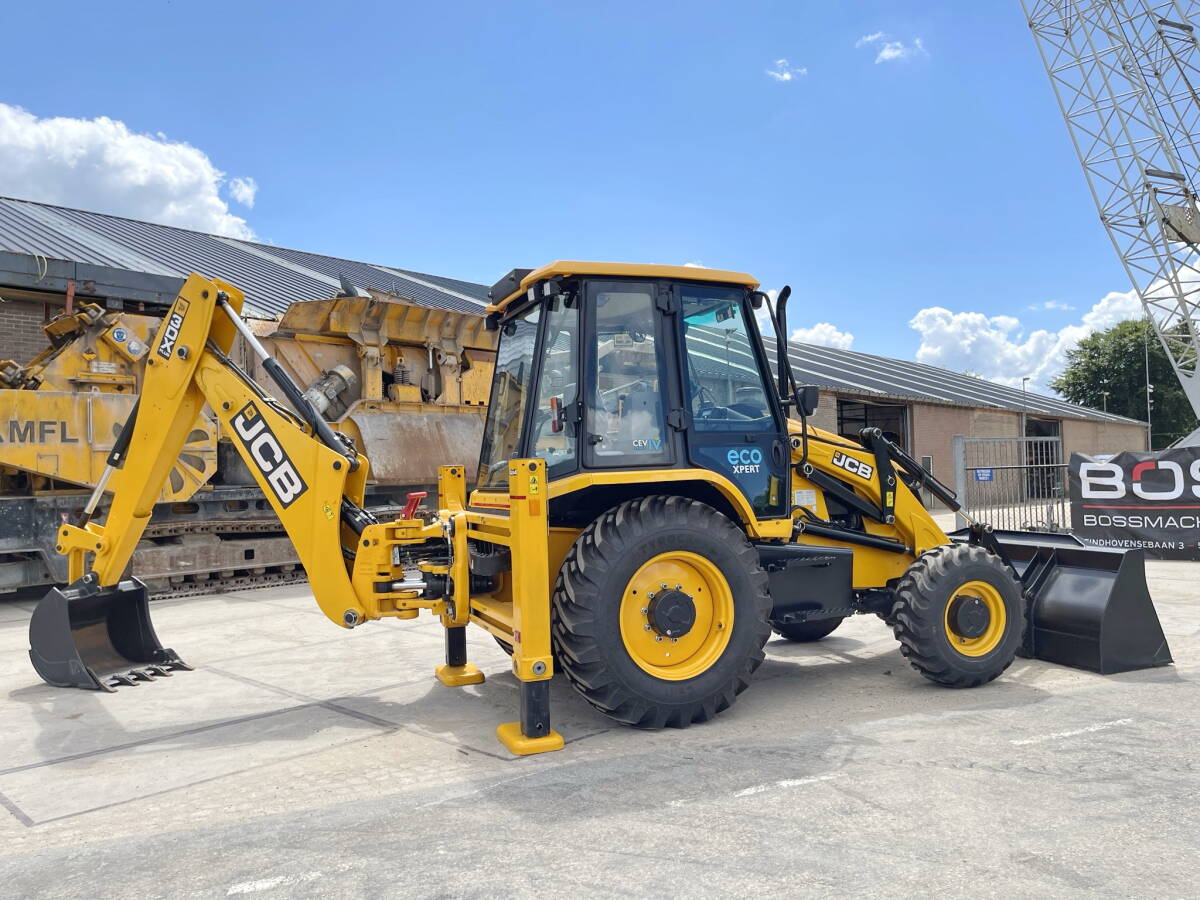

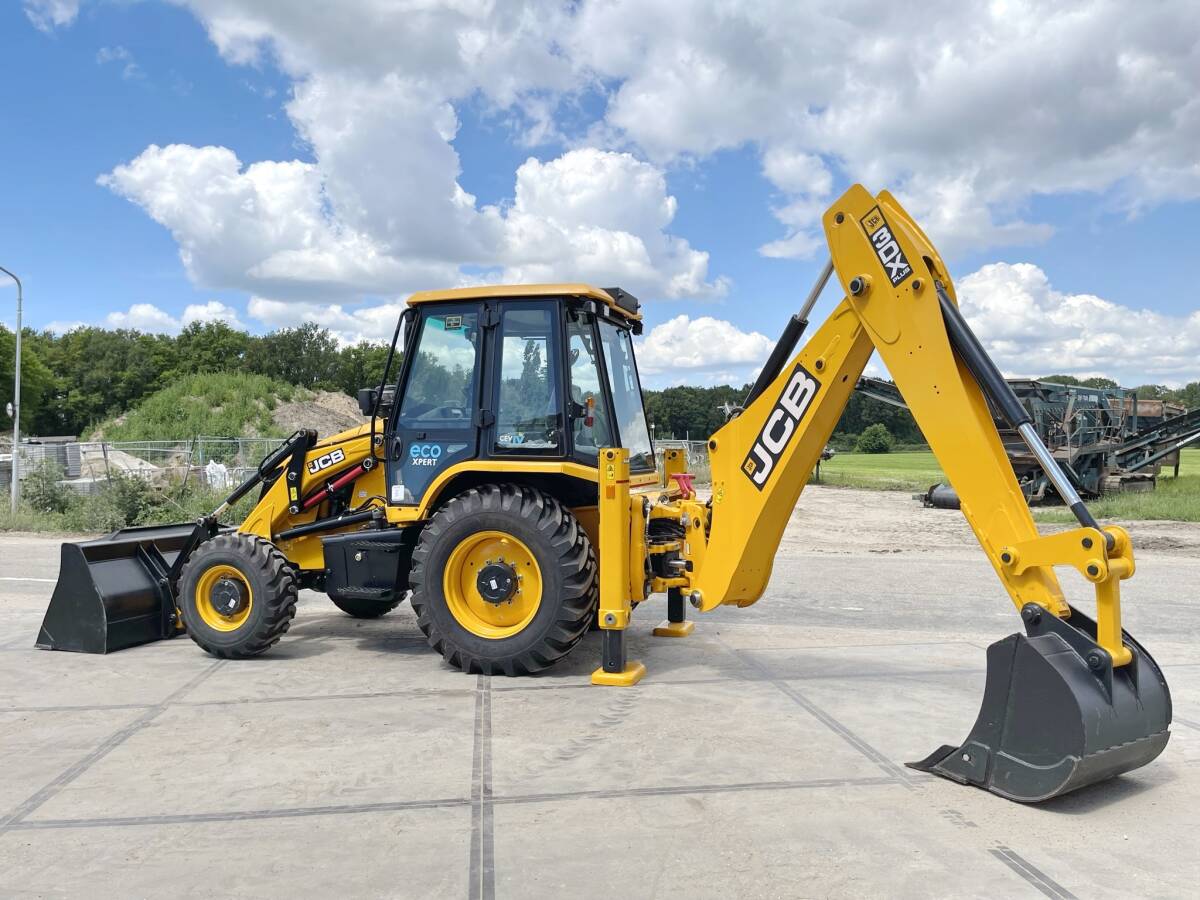

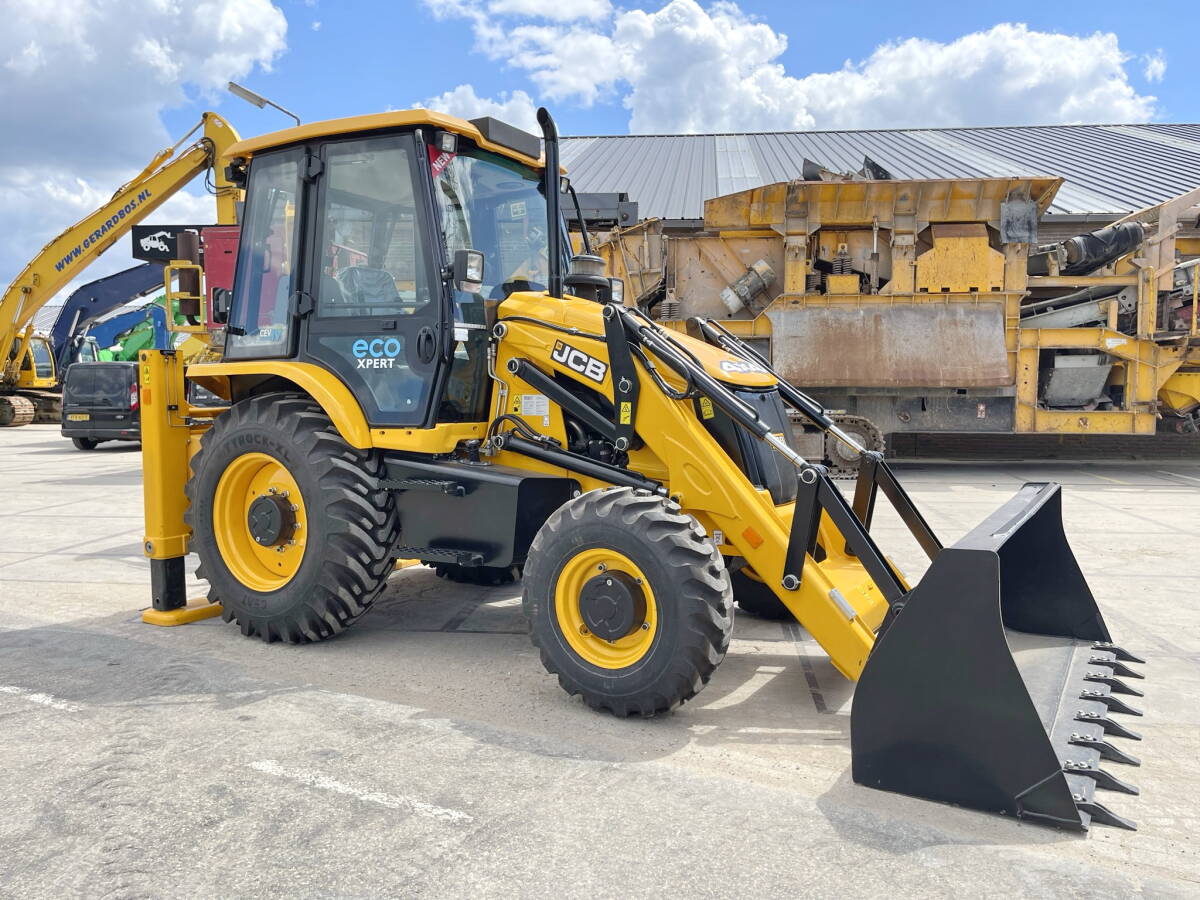

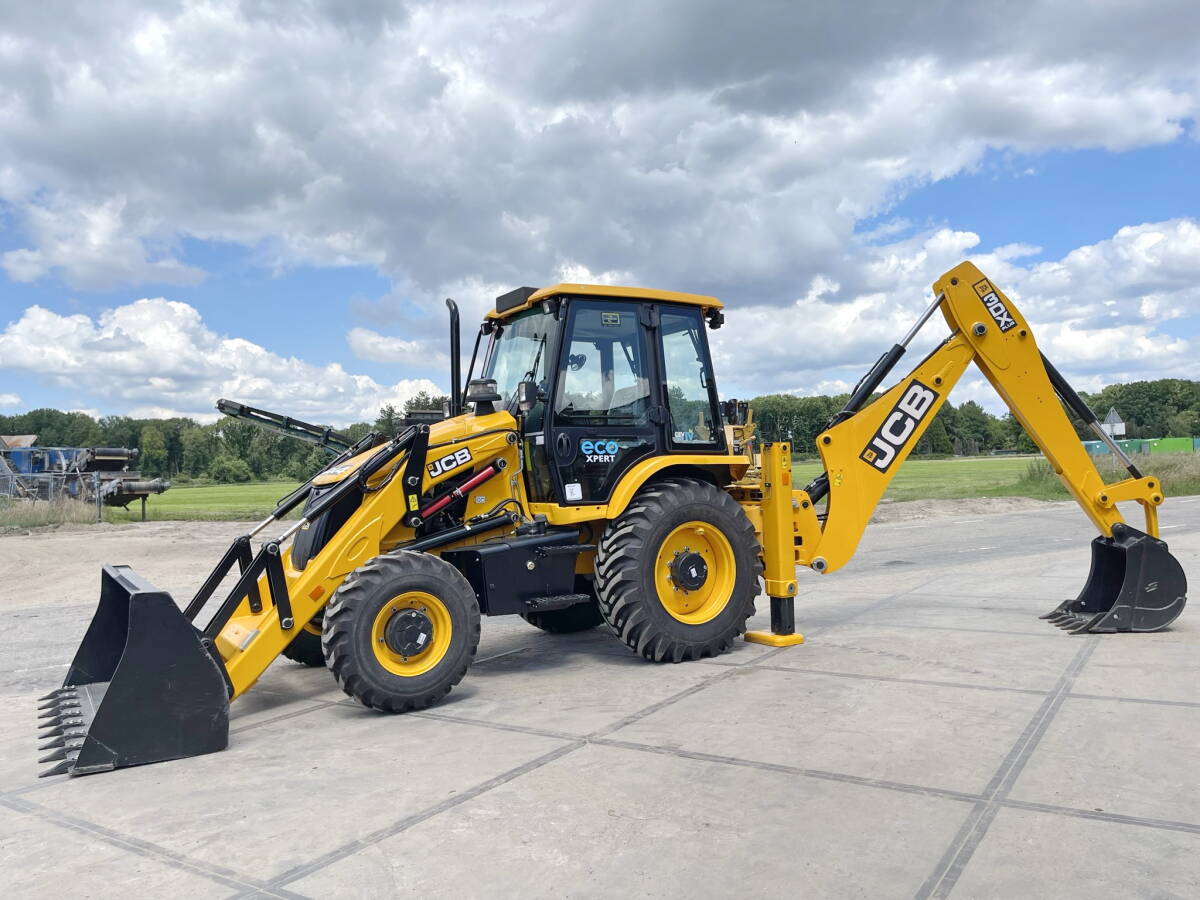

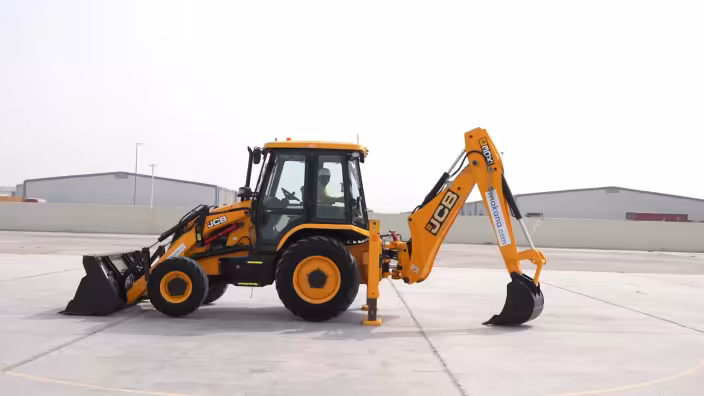

Generation-JCB 3DX Backhoe loaders-exterior

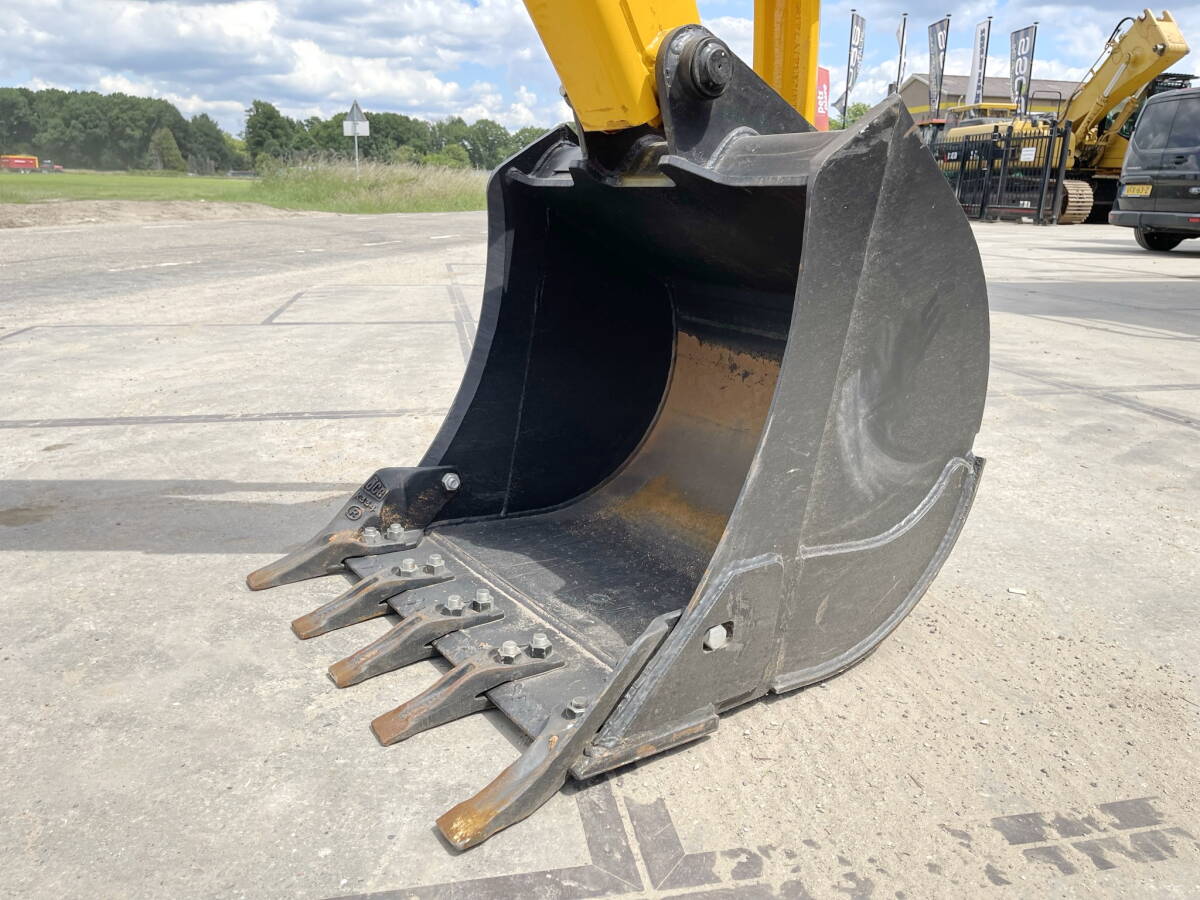

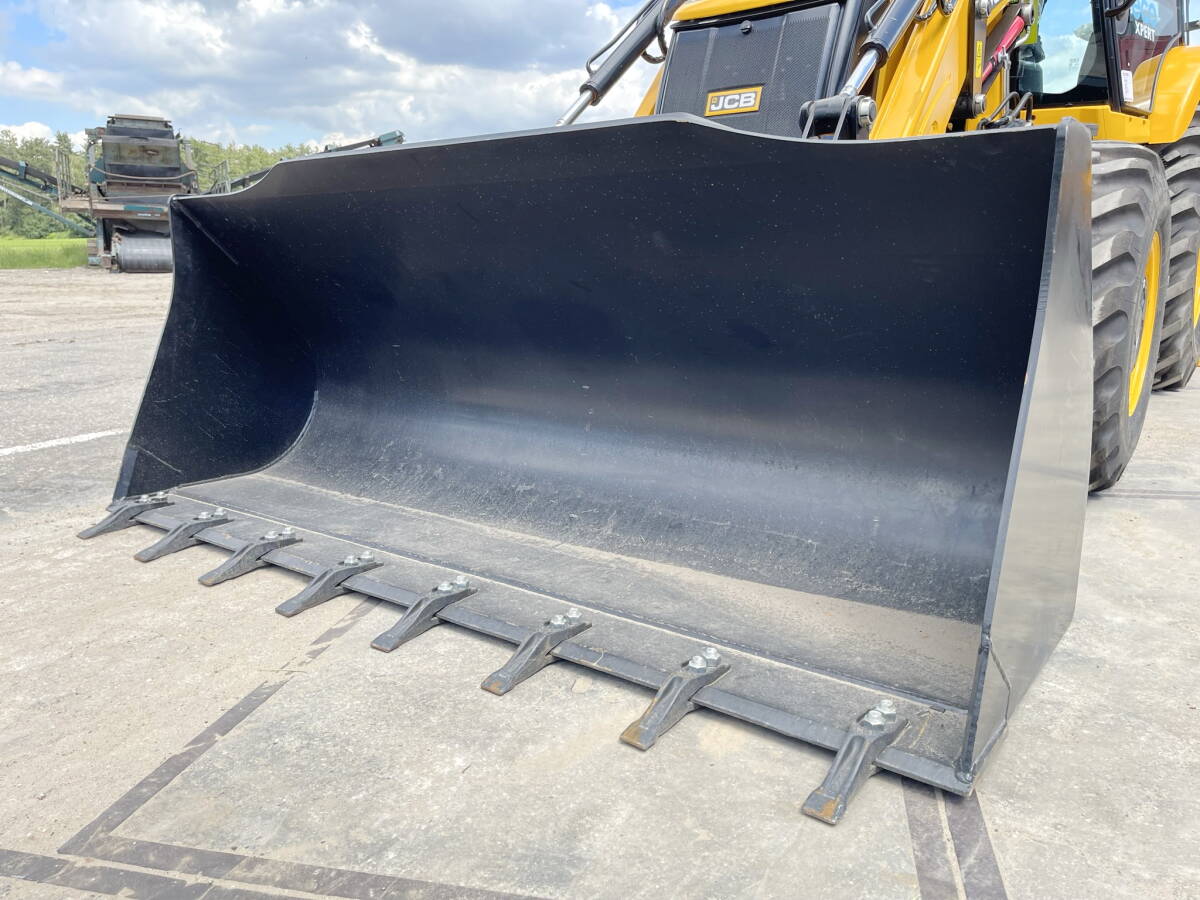

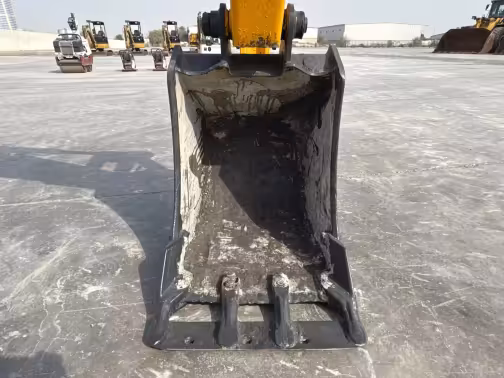

Generation-JCB 3DX Backhoe loaders-attachments
